Understanding Color Spaces in Image Processing and Computer Vision


Hi Guys! welcome to new blog, and In this blog we will talk about Color Spaces in image processing and computer vision, a color space is a specific way of representing colors using numerical values. Different color spaces are used for different purposes, such as displaying images, processing colors, and detecting objects.

Choosing the right color space is crucial for image filtering, segmentation, object detection, and feature extraction.

What Are Color Spaces?

A color space is a mathematical model that represents colors in a structured way. It defines how colors are stored, displayed, and processed in digital images.

Why Are Color Spaces Important?

  • Help in image processing (color correction, segmentation, filtering)
  • Enable accurate color representation across different devices
  • Optimize image compression (JPEG, PNG, etc.)
  • Improve object detection and feature extraction

Types of Color Spaces

There are multiple color spaces, each designed for specific tasks. Some of the most commonly used color spaces in image processing are:

1. RGB (Red, Green, Blue) Color Space

🟢🔵🔴 Primary Colors for Digital Displays

  • The RGB model represents colors using three components:
    • R (Red)
    • G (Green)
    • B (Blue)
  • Used in computer screens, cameras, and digital images.
  • Each color is a combination of red, green, and blue values (0-255 in 8-bit images).

✅ Advantages:
✔️ Widely used in digital devices
✔️ Good for displaying images

❌ Disadvantages:
❌ Not ideal for color-based object detection
❌ Lighting changes affect RGB values

💡 Example (OpenCV Conversion):

rgb_image = cv2.imread("image.jpg")  # OpenCV loads images in BGR format
rgb_image = cv2.cvtColor(rgb_image, cv2.COLOR_BGR2RGB)  # Convert to RGB

2. HSV (Hue, Saturation, Value) Color Space

🌈 Best for Color Segmentation & Object Detection

  • Hue (H): Defines the color type (red, green, blue, etc.).
  • Saturation (S): Intensity of the color (0% is grayscale, 100% is pure color).
  • Value (V): Brightness of the color.

✅ Advantages:
✔️ Separates color from brightness, making it robust to lighting changes.
✔️ Ideal for color-based object tracking.

❌ Disadvantages:
❌ Not directly supported by display devices.

💡 Example (Convert RGB to HSV):

hsv_image = cv2.cvtColor(rgb_image, cv2.COLOR_RGB2HSV)

3. CMYK (Cyan, Magenta, Yellow, Black) Color Space

🖨 Best for Printing

  • CMYK is a subtractive color model used in printers.
  • The primary colors are Cyan, Magenta, Yellow, and Black (Key).
  • Colors are produced by subtracting light from white.

✅ Advantages:
✔️ Used in professional printing and publishing.
✔️ Ensures accurate printed colors.

❌ Disadvantages:
❌ Not suitable for screen display.

4. LAB (CIELAB) Color Space

🎨 Device-Independent & Perceptually Uniform

  • L (Lightness): Represents brightness (0 = black, 100 = white).
  • A (Green to Red) and B (Blue to Yellow): Define color values.
  • Used in color correction, image enhancement, and edge detection.

✅ Advantages:
✔️ Perceptually uniform (closer to how humans see colors).
✔️ Device-independent (not affected by display settings).

❌ Disadvantages:
❌ More complex to understand and use.

💡 Example (Convert RGB to LAB):

lab_image = cv2.cvtColor(rgb_image, cv2.COLOR_RGB2LAB)

5. YCrCb (Luminance-Chrominance) Color Space

📺 Best for Video Processing & Compression

  • Y (Luminance): Represents brightness (grayscale).
  • Cr (Chrominance Red) & Cb (Chrominance Blue) store color information.
  • Used in video compression (JPEG, MPEG, and H.264).

✅ Advantages:
✔️ Reduces data size for efficient video compression.
✔️ Helps in face detection and background removal.

💡 Example (Convert RGB to YCrCb):

ycrcb_image = cv2.cvtColor(rgb_image, cv2.COLOR_RGB2YCrCb)

Comparison of Color Spaces

Color SpaceBest Use CasesStrengthsWeaknesses
RGBDigital images, displaysDirectly supported by screensSensitive to lighting changes
HSVObject detection, color filteringColor separation, robust to lighting changesNot display-friendly
CMYKPrintingAccurate print colorsNot used in displays
LABColor correction, enhancementDevice-independent, perceptually uniformComplex to work with
YCrCbVideo compression, face detectionEfficient for storage and processingNot intuitive for human vision
  • RGB → Best for displaying images.
  • HSV → Best for color-based object detection and segmentation.
  • CMYK → Used in printing.
  • LAB → Used for color correction.
  • YCrCb → Used for video compression and face detection.

Coding

# Our Setup, Import Libaries, Create our Imshow Function and Download our Images
import cv2
import numpy as np
from matplotlib import pyplot as plt

Let's imports three essential libraries used for image processing and visualization in Python:

  1. import cv2

    • This imports the OpenCV library, which is widely used for image processing, computer vision tasks, and real-time video analysis.
    • OpenCV provides functions for image manipulation, feature detection, object recognition, and more.

  2. import numpy as np

    • This imports the NumPy library, which is used for numerical computing in Python.
    • NumPy provides powerful array operations, which are essential for handling image data, as images are stored as arrays of pixel values.

  3. from matplotlib import pyplot as plt

    • This imports the pyplot module from Matplotlib, a popular library for data visualization.
    • The pyplot module provides functions to display images, histograms, and various plots.
    • The alias plt is commonly used to simplify function calls.

This code sets up the environment for performing image processing using OpenCV (cv2), handling image arrays efficiently with NumPy (np), and visualizing results using Matplotlib (plt).

# Load our input image
image = cv2.imread('./image/lena.webp')

# Use cv2.split to get each color space separately
B, G, R = cv2.split(image)
print(B.shape)
print(G.shape)
print(R.shape)

(1024, 1024)
(1024, 1024)
(1024, 1024)

Understanding the Code Block: Splitting Image Channels Using OpenCV

When working with images in OpenCV, it's important to understand how color images are structured and how we can manipulate their individual color channels. Let’s break down the given code step by step.

image = cv2.imread('./image/lena.webp')
  • This line loads an image from the specified path (./image/lena.webp) using cv2.imread().
  • The function reads the image as a NumPy array of pixel values.
  • OpenCV loads images in the BGR (Blue, Green, Red) format by default, unlike Matplotlib, which uses RGB.
B, G, R = cv2.split(image)
  • The function cv2.split(image) splits the image into its three color channels:
    • B - Blue channel
    • G - Green channel
    • R - Red channel
  • Each channel is a grayscale image (2D NumPy array) representing the intensity of that color at each pixel.
print(B.shape)
print(G.shape)
print(R.shape)
  • These lines print the dimensions of each channel.
  • Since all three channels belong to the same image, they will have the same shape.
  • If the original image is of size (Height, Width, 3), each split channel will have a shape of (Height, Width).

Example Output

Assuming the image has a resolution of 512×512 pixels, the output might look like:

(512, 512)
(512, 512)
(512, 512)

Each channel is a grayscale representation of the respective color component.

Why Split Image Channels?

Splitting an image into its color channels is useful for:

  • Enhancing individual color components
  • Applying filters to specific channels
  • Analyzing color histograms
  • Performing color-based segmentation

In OpenCV, you can also merge the channels back using:

image_merged = cv2.merge([B, G, R])

This code snippet provides a fundamental technique for working with color images in OpenCV. By splitting and analyzing the color channels, we can gain deeper insights into an image's structure and modify it effectively.

# Define our imshow function
def imshow(title = "Image", image = None, size = 6):
    w, h = image.shape[0], image.shape[1]
    aspect_ratio = w/h
    plt.figure(figsize=(size * aspect_ratio,size))
    plt.imshow(cv2.cvtColor(image, cv2.COLOR_BGR2RGB))
    plt.title(title)
    plt.show()

Explaining the imshow Function in OpenCV with Matplotlib

When working with images in OpenCV, displaying them properly is essential for visualization and debugging. The given function imshow provides a convenient way to display images using Matplotlib while maintaining aspect ratio and color correctness.

Breaking Down the Code

def imshow(title="Image", image=None, size=6):
  • Defines a function named imshow that takes three optional parameters:
    • title: The title of the displayed image (default is "Image").
    • image: The image to be displayed (expects a NumPy array).
    • size: The size of the displayed image (default is 6 inches).
w, h = image.shape[0], image.shape[1]
aspect_ratio = w / h
  • Extracts the width (w) and height (h) of the image.
  • Calculates the aspect ratio (w/h) to ensure that the image is displayed with its original proportions.
plt.figure(figsize=(size * aspect_ratio, size))
  • Creates a Matplotlib figure with a dynamic figsize that maintains the aspect ratio.
  • The width of the figure is scaled by size * aspect_ratio, while the height remains size.
plt.imshow(cv2.cvtColor(image, cv2.COLOR_BGR2RGB))
  • Converts the image from OpenCV’s BGR format to Matplotlib’s RGB format using cv2.cvtColor().
  • OpenCV loads images in BGR order, but Matplotlib expects RGB, so the color channels need to be swapped.
plt.title(title)
plt.show()
  • Sets the title of the image using plt.title(title).
  • Displays the image using plt.show().

Why Use This Function?

This function makes it easier to:

  • Display OpenCV images correctly in Matplotlib.
  • Maintain the aspect ratio automatically.
  • Customize image size and title.

Example Usage

import cv2
import numpy as np
from matplotlib import pyplot as plt

# Load an image
image = cv2.imread('./image/lena.webp')

# Call the function
imshow("Lena Image", image)

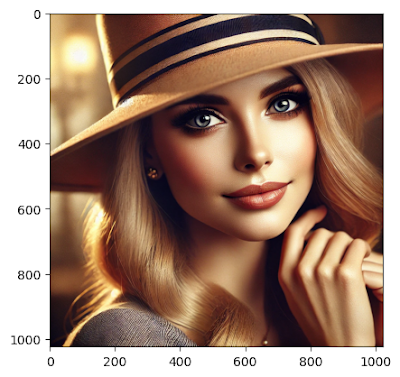

Output

This will correctly display the Lena image with the right colors and aspect ratio.

The imshow function is a simple yet effective tool for visualizing images with Matplotlib, ensuring correct color representation and aspect ratio. It is particularly useful when working with image processing and computer vision tasks in Python.

# Each color space on it's on will look like a grayscale as it lacks the other color channels
imshow("Blue Channel Only", B)

import numpy as np

# Let's create a matrix of zeros
# with dimensions of the image h x w
zeros = np.zeros(image.shape[:2], dtype = "uint8")

imshow("Red", cv2.merge([zeros, zeros, R]))
imshow("Green", cv2.merge([zeros, G, zeros]))
imshow("Blue", cv2.merge([B, zeros, zeros]))


Visualizing Color Channels in an Image Using OpenCV and NumPy

When working with images, understanding how color channels contribute to the final image is crucial. This code snippet demonstrates how to extract and visualize individual Red, Green, and Blue (RGB) channels separately using OpenCV and NumPy.

1. Importing Required Libraries

import numpy as np
  • NumPy is imported for handling numerical operations, such as creating empty arrays for processing image data.

2. Creating a Black (Zero) Matrix

zeros = np.zeros(image.shape[:2], dtype="uint8")
  • image.shape[:2] extracts the height and width of the image (ignoring the color channels).
  • np.zeros((height, width), dtype="uint8") creates a grayscale black image (2D array of zeros) the same size as the input image.
  • This black matrix is used to isolate specific color channels.

3. Visualizing the Red Channel

imshow("Red", cv2.merge([zeros, zeros, R]))
  • cv2.merge([zeros, zeros, R]) creates a new image where:
    • Blue channel = zeros (black)
    • Green channel = zeros (black)
    • Red channel = R (original red values)
  • This results in an image showing only the red intensities while other channels remain black.

4. Visualizing the Green Channel

imshow("Green", cv2.merge([zeros, G, zeros]))
  • cv2.merge([zeros, G, zeros]) creates a new image where:
    • Blue channel = zeros (black)
    • Green channel = G (original green values)
    • Red channel = zeros (black)
  • This results in an image highlighting only the green intensities.

5. Visualizing the Blue Channel

imshow("Blue", cv2.merge([B, zeros, zeros]))
  • cv2.merge([B, zeros, zeros]) creates a new image where:
    • Blue channel = B (original blue values)
    • Green channel = zeros (black)
    • Red channel = zeros (black)
  • This results in an image highlighting only the blue intensities.

Why Use This Approach?

  • Helps in understanding the contribution of each color channel.
  • Useful for image processing and computer vision tasks like color filtering, segmentation, and object detection.
  • Provides insights into how colors mix to form the final image.

Output

This will display three images:

  • Red channel visualization (only red shades visible)
  • Green channel visualization (only green shades visible)
  • Blue channel visualization (only blue shades visible)

This technique is widely used in image processing to manipulate colors, enhance specific features, and perform color-based segmentation. By isolating each channel, we gain better control over how we modify and analyze images in OpenCV.

image = cv2.imread('./image/lena.webp')

# OpenCV's 'split' function splites the image into each color index
B, G, R = cv2.split(image)

# Let's re-make the original image,
merged = cv2.merge([B, G, R])
imshow("Merged", merged)

Merging Color Channels in an Image Using OpenCV

In digital image processing, color images are typically represented using three separate color channels: Blue (B), Green (G), and Red (R). OpenCV allows us to extract and manipulate these channels separately and then merge them back into a single image.

Understanding the Code Step by Step

1. Loading the Image

image = cv2.imread('./image/lena.webp')
  • cv2.imread() loads an image from the specified path ('./image/lena.webp').
  • The image is stored as a NumPy array, where:
    • image.shape → (height, width, 3)
    • The third dimension represents the three color channels (B, G, R).
  • OpenCV loads images in BGR (Blue, Green, Red) format, not RGB.

2. Splitting the Color Channels

B, G, R = cv2.split(image)
  • cv2.split(image) separates the Blue (B), Green (G), and Red (R) channels into three individual grayscale images.
  • Each of these channels is a 2D NumPy array of shape (height, width), containing intensity values (0-255).

3. Merging the Channels Back

merged = cv2.merge([B, G, R])
  • cv2.merge([B, G, R]) recombines the three color channels back into a single color image.
  • The new image is identical to the original one, as no modifications were made to the channels.

4. Displaying the Merged Image

imshow("Merged", merged)
  • The imshow() function (previously defined) is used to display the merged image correctly in Matplotlib.
  • Since OpenCV uses BGR format, we ensure proper color representation before displaying.

Why is Splitting and Merging Useful?

  • Color Manipulation – Allows applying transformations to specific channels.
  • Feature Detection – Some features (edges, textures) are more visible in certain channels.
  • Image Filtering – Enhancing or suppressing colors for effects like color segmentation.
  • Object Detection – Some objects are more distinguishable in one color channel.

Example Usage: Modifying the Channels

We can manipulate individual channels before merging them back. For example, making the red channel stronger:

# Increase red channel intensity
R = cv2.add(R, 50)  # Increases brightness in the red channel

# Merge modified channels
modified_image = cv2.merge([B, G, R])

# Display the result
imshow("Modified Image", modified_image)

This will make the red tones in the image appear more intense.

Splitting and merging color channels is an essential technique in image processing and computer vision. It allows us to analyze and manipulate specific color components individually, leading to powerful transformations.

# Let's amplify the blue color
merged = cv2.merge([B+100, G, R])
imshow("Blue Boost", merged)

Enhancing Image Colors: Boosting the Blue Channel Using OpenCV

Color manipulation is a powerful technique in image processing, often used to enhance specific visual elements. The given code demonstrates how to boost the blue channel in an image using OpenCV and NumPy.

1. Merging the Image with a Boosted Blue Channel

merged = cv2.merge([B+100, G, R])
  • B + 100: Increases the intensity of the blue channel by adding 100 to each pixel value.
  • The green (G) and red (R) channels remain unchanged.
  • cv2.merge([B+100, G, R]) recombines the modified BGR channels into a new color image.

Note: Pixel values in OpenCV images range from 0 to 255. Adding 100 might cause some pixel values to exceed 255, which can lead to saturation (clipping at 255).

  • Solution: Use cv2.add() instead of direct addition to prevent overflow:
    B = cv2.add(B, 100)  # Ensures pixel values stay within the valid range

2. Displaying the Modified Image

imshow("Blue Boost", merged)
  • Calls the imshow() function to display the modified image.
  • Since OpenCV loads images in BGR format, the boosted blue color will be clearly visible.

Impact of Boosting the Blue Channel

Before (Original Image)

  • The blue component is at its natural intensity.

After (Modified Image)

  • The image appears cooler due to the increased blue intensity.
  • Areas with high blue content (e.g., sky, water) become more prominent.

Real-World Applications

  • Color Correction – Adjusting color balance in images.
  • Image Enhancement – Making colors more vivid for artistic effects.
  • Weather Effects – Simulating a cooler (bluish) or warmer (reddish) tone.
  • Night Vision Simulation – Boosting blue while reducing red and green can create a night vision effect.

Example Usage: Experimenting with Different Color Enhancements

Instead of boosting blue, try increasing the green or red channels:

# Boost green channel
merged_green = cv2.merge([B, G+100, R])
imshow("Green Boost", merged_green)

# Boost red channel
merged_red = cv2.merge([B, G, R+100])
imshow("Red Boost", merged_red)

Each of these modifications shifts the image’s overall color balance, creating unique visual effects.

Manipulating individual color channels is a simple yet powerful technique for enhancing images in OpenCV. By adjusting blue, green, or red intensities, we can modify the mood, realism, and visibility of an image.

Understanding HSV Color Space in Image Processing

Introduction

In image processing, colors are often represented using different color spaces. While the RGB (Red, Green, Blue) color model is widely used, it is not always the best choice for certain tasks like color filtering, object detection, and image segmentation. This is where the HSV (Hue, Saturation, Value) color space comes in.

HSV is often preferred over RGB because it better represents how humans perceive colors and makes certain image processing tasks easier.

What is HSV Color Space?

HSV stands for:

  1. Hue (H) → Represents the color type (red, blue, green, etc.).

    • Measured in degrees (0° to 360°).
    • Example values:
      • 0° → Red
      • 60° → Yellow
      • 120° → Green
      • 180° → Cyan
      • 240° → Blue
      • 300° → Magenta

  2. Saturation (S) → Represents the intensity or purity of the color.

    • Measured as a percentage (0% to 100%).
    • 0% means no color (gray), 100% means full color.

  3. Value (V) → Represents the brightness of the color.

    • 0% is black, and 100% is the brightest version of the color.

Why Use HSV Instead of RGB?

  • Easier Color Filtering → You can filter colors based on hue without worrying about lighting variations.
  • Better for Image Segmentation → Separates color information (H) from intensity (V), making object detection easier.
  • Human Perception Friendly → Mimics how people see and understand colors.
  • Better for Color Adjustments → Allows changes in brightness and saturation without affecting the hue.

HSV color space is a powerful alternative to RGB for image processing tasks like color filtering, segmentation, and object tracking. It provides a more intuitive representation of colors and simplifies many operations.

# Reload our image
image = cv2.imread('./image/lena.webp')

# Convert to HSV
hsv_image = cv2.cvtColor(image, cv2.COLOR_BGR2HSV)
imshow('HSV', hsv_image)

plt.imshow(cv2.cvtColor(hsv_image, cv2.COLOR_HSV2RGB))
plt.show()

When working with the HSV (Hue, Saturation, Value) color space in OpenCV, directly displaying an HSV image using Matplotlib (plt.imshow()) can lead to incorrect colors. This is because Matplotlib expects RGB format, while OpenCV works with BGR and HSV formats.

The given code ensures proper color representation by converting the HSV image back to RGB before displaying it.

Understanding the Code Step by Step

plt.imshow(cv2.cvtColor(hsv_image, cv2.COLOR_HSV2RGB))
plt.show()

1. Converting HSV to RGB

cv2.cvtColor(hsv_image, cv2.COLOR_HSV2RGB)
  • cv2.cvtColor() is used to convert the color space of an image.

  • cv2.COLOR_HSV2RGB changes the HSV image back to RGB format so that it can be correctly displayed using Matplotlib.

  • Why convert to RGB?

    • OpenCV handles images in BGR or HSV, but Matplotlib expects images in RGB format.
    • Directly displaying an HSV image using plt.imshow(hsv_image) will result in distorted colors.

2. Displaying the Converted Image

plt.imshow(...)
plt.show()
  • plt.imshow() takes the correctly converted RGB image and displays it.
  • plt.show() renders the image in Matplotlib.

Why is This Necessary? (Common Mistake)

If you do not convert the HSV image to RGB before displaying it, you will see incorrect colors because Matplotlib will misinterpret HSV values as RGB.

  • Incorrect way (without conversion)
    plt.imshow(hsv_image)  # Colors will be distorted!
plt.show()
  • Correct way (with conversion)
    plt.imshow(cv2.cvtColor(hsv_image, cv2.COLOR_HSV2RGB))
plt.show()

Let's view each channel type in the HSV Color Space representation

# Switching back to viewing the RGB representation
imshow("Hue", hsv_image[:, :, 0])
imshow("Saturation", hsv_image[:, :, 1])
imshow("Value", hsv_image[:, :, 2])


The HSV (Hue, Saturation, Value) color space separates color information into three distinct components, making it useful for color-based filtering, segmentation, and object detection.

The given code extracts and displays each individual HSV channel from an image. This helps in understanding how each component contributes to the final color representation.

Understanding the Code Step by Step

imshow("Hue", hsv_image[:, :, 0])
imshow("Saturation", hsv_image[:, :, 1])
imshow("Value", hsv_image[:, :, 2])

This code splits and displays the Hue, Saturation, and Value channels separately.

1. Extracting the Hue Channel

imshow("Hue", hsv_image[:, :, 0])
  • hsv_image[:, :, 0] extracts the first channel (Hue).
  • The hue represents the type of color (red, blue, green, etc.) and is measured in degrees (0° to 360°).
  • In grayscale visualization:
    • Different shades represent different colors.
    • Objects with the same color have similar intensity values.

2. Extracting the Saturation Channel

imshow("Saturation", hsv_image[:, :, 1])
  • hsv_image[:, :, 1] extracts the second channel (Saturation).
  • The saturation defines the intensity/purity of the color.
    • 0% saturation → Gray (no color).
    • 100% saturation → Fully vivid color.
  • In grayscale visualization:
    • Brighter areas indicate more saturated colors.
    • Darker areas represent desaturated regions (closer to grayscale).

3. Extracting the Value (Brightness) Channel

imshow("Value", hsv_image[:, :, 2])
  • hsv_image[:, :, 2] extracts the third channel (Value).
  • The value (V) represents the brightness (intensity) of the color.
    • 0% brightness → Black.
    • 100% brightness → Full brightness of the color.
  • In grayscale visualization:
    • Bright areas are high-intensity (lighter).
    • Dark areas are low-intensity (darker).

Why Visualizing HSV Channels is Useful?

  • Color Segmentation – Helps isolate objects based on color rather than RGB intensity.
  • Feature Extraction – Highlights distinct features based on color, saturation, and brightness.
  • Image Enhancement – Adjust brightness and contrast without affecting hue.
  • Object Tracking – Many tracking algorithms use HSV for better accuracy.

Wrapping Up

In this discussion, we explored the concept of color spaces in image processing and their practical applications using OpenCV and Matplotlib. We covered:

  • What are Color Spaces? – A way to represent colors numerically for digital processing.
  • Types of Color Spaces – Including RGB, HSV, CMYK, LAB, and YCrCb, each serving different purposes.
  • Practical Code Implementations –
    • How to split and visualize individual RGB and HSV channels.
    • How to convert between color spaces for better image analysis.
    • How to correctly display images using Matplotlib by converting color formats.
  • Use Cases – Color segmentation, object detection, image enhancement, and video compression.

Key Takeaways

🎨 RGB → Ideal for displaying images but sensitive to lighting.
🌈 HSV → Best for color-based object detection due to its lighting-independent nature.
🖨 CMYK → Used in printing for accurate color reproduction.
📸 LAB → Provides a perceptually uniform color representation for image correction.
📹 YCrCb → Widely used in video processing and compression.

Understanding color spaces is crucial for image processing, computer vision, and AI applications. By leveraging the right color space, we can enhance images, detect objects efficiently, and improve image quality.

Labels

Labels:

Comments

Post a Comment
